2 EBTsmart Unlock Keys for Bosch Smart System
- SKU
- 2-ebt-smart-unlock-key
2 EBTsmart Unlock Keys for Bosch Smart System
Two digital licence codes for two compatible Bosch Smart System e-bikes – no chip, no app, no installation.
This package includes 2 EBTsmart Unlock Keys for compatible Bosch Smart System / BES3 e-bikes. Depending on the selected mode, motor assistance can be increased to up to 32 km/h or, where supported, optionally to up to 45 km/h – without additional hardware, without motor disassembly and without software installation.
In 32 km/h mode, speed, distance and mileage remain accurate. In the optional 45 km/h mode, displayed values are no longer accurate from around 22 km/h. This gives you the choice between a cleaner display logic and a wider unlock range.
The EBTsmart Unlock Key is designed specifically for Bosch Smart System bikes and supports many configurations with or without rim magnet. It also covers many special setups such as DualBattery, e-Shift and numerous Bosch display / remote combinations.
Main Benefits
- 2 digital licences for 2 compatible Bosch Smart System e-bikes.
- Fully browser-based – no app installation and no local software installation required.
- No hardware modification – no motor removal, no flashing, no chip and no dongle.
- Made for Bosch Smart System / BES3 – including many setups with or without rim magnet.
- Permanent use – remains available even after battery replacement.
- Reversible at any time – you can return to the original 25 km/h setting whenever needed.
- 32 km/h mode: Assistance up to 32 km/h with correct speed, distance and mileage display.
- 45 km/h mode: Optional extension to up to 45 km/h. In this mode, display values are no longer accurate from around 22 km/h.
- ABS note: On e-bikes equipped with ABS, the system supports up to 32 km/h only. The 45 km/h option is not available with ABS.
- Clean digital solution – no visible tuning hardware on the bike.

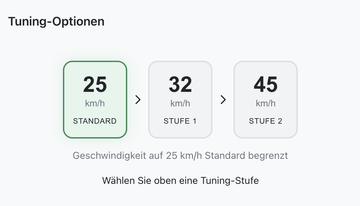

32 km/h mode vs 45 km/h mode
One of the biggest strengths of the EBTsmart Unlock Key is that it does not force every Bosch Smart System rider into the same setup.

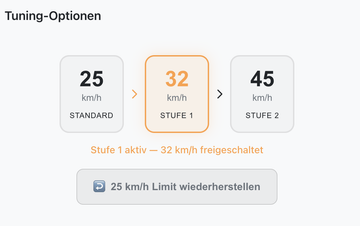

- 32 km/h mode: Motor assistance is increased to up to 32 km/h. In this mode, speed, distance and mileage remain accurate.

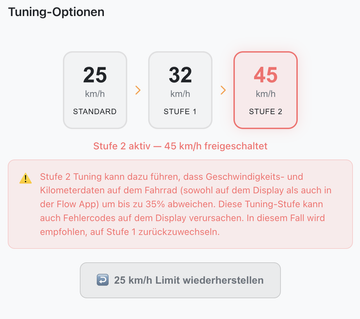

- 45 km/h mode: Depending on the bike and configuration, motor assistance can optionally be increased to up to 45 km/h. In this mode, displayed values are no longer accurate from around 22 km/h.
This means you can choose between a more conservative unlock with clean display behaviour and a more performance-oriented mode with a wider support range.
Important Information & Tips
- Please enter the licence key with hyphens and without spaces.
- Use a fully functional USB data cable, not a charging-only cable.

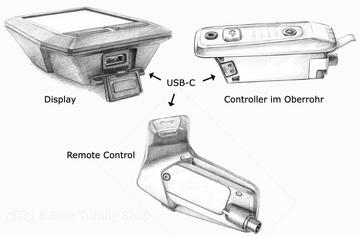

- Depending on the bike, the USB port may be located on the display, the remote or the controller in the top tube.
- The activation process may take several minutes.
- Before starting, make sure your computer or smartphone and the e-bike battery are sufficiently charged.
- After activation, the riding profiles should be configured correctly in the eBike Flow app.
- You can return to the original 25 km/h limit at any time and reactivate the unlock later if needed.
- The optional 45 km/h mode can be selected repeatedly where supported, but it is not available for bikes with ABS.
- Once a licence code has been used, it is excluded from refund.
- If minor bugs occur, they are documented and considered in future updates.
Compatibility
Important note on BDU identification for Bosch Smart System:
For Bosch Smart System bikes, general labels such as “CX”, “Performance Line” or even “Smart System” are often not precise enough to identify the exact configuration. In many cases, the specific BDU code is the better reference point. The BDU is Bosch’s internal designation for the drive unit and helps distinguish between motor families and technical variants.
In everyday use, shortened family names such as BDU31, BDU33, BDU37 or BDU38 are common. These usually refer to broader BDU families rather than one exact version. As a result, a short label such as BDU37 may cover several specific sub-variants.
Typical Bosch Smart System BDU families include:
- BDU31
- BDU33
- BDU37
- BDU38
Known Bosch Smart System drive units / BDU families:
- Performance Line SX – BDU314Y
- Active Line – BDU332Y
- Active Line Plus – BDU334Y
- Performance Line – BDU336Y / BDU346Y
- Performance Line PX – BDU347Y
- Performance Line CX – BDU374Y / BDU384Y
- Cargo Line – BDU374Y / BDU384Y
- Performance Line CX Race Limited Edition – BDU376Y
- Performance Line CX-R – BDU386Y
Why this matters:
A shortened BDU label such as BDU31 or BDU37 can be useful for basic orientation, but it is often not detailed enough for a full compatibility decision. The final assessment depends on the exact combination of BDU, rim magnet, ABS, e-Shift and the overall Bosch Smart System setup. If you are unsure, check the exact BDU code in the eBike Flow app before ordering.
Tested systems / special cases:
• Rim magnet: supported
• DualBattery: supported
• ABS: supported up to 32 km/h only
• e-Shift: supported
• All displays / BRCs: supported
• Compatible with all software versions tested so far
Compatible displays & control units
Supported Smart System combinations include:
Kiox series
• Kiox 300
• Kiox 500
• Kiox 400C
Purion series
• Purion 200
• Purion 400
Other supported units
• Intuvia 100
• System Controller + LED Remote
(USB port is located on the rear side behind a rubber cover)
• Mini Remote / Dropbar Remote
• SmartphoneGrip (Flow app)
• Smart System hub motors
How It Works
- Order the 2-licence package.
- Receive your licence details after purchase.
- Connect the e-bike via USB data cable to a PC, Mac or Android smartphone.
- Open the web application: Login
- Enter your licence key and start the unlocking process.
- Activate, reset or re-activate the system whenever required.
Support: If you need help with activation or compatibility, please use the English support page: Support
What’s Included
- 2× EBTsmart Unlock Keys (digital licences)
- Access to the web application for activation and reset (Login)
- Unlocking of motor assistance to 32 km/h and, where supported, optionally up to 45 km/h
- Reset option via the same platform at any time
Legal Notice
This product is intended exclusively for use on private property or for testing purposes. Use on public roads is not permitted in most countries. The buyer is fully responsible for any legal, technical or safety-related consequences arising from the installation or use of this product.
Instant Delivery & 100% Satisfaction Guarantee
Your EBT Unlock Key will be delivered immediately after your order – no waiting, no shipping delays. We believe in our product. If you're not satisfied or if any information provided turns out to be incorrect, you’re covered by our Money Back Guarantee – no questions asked.
